How to deploy on AWS EC2¶
Amazon Web Services is a popular subsidiary of Amazon that provides on-demand cloud computing platforms on a metered pay-as-you-go basis.
AWS web console: console.aws.amazon.com
Prerequisites¶
A physical or virtual machine running Ubuntu 24.04+
Juju 3.6+ installed via snap
Install the AWS CLI¶
Install the Amazon Web Services CLI by following the official AWS documentation .
To check it is correctly installed, run
user@host:~$ aws-cli/2.13.25 Python/3.11.5 Linux/6.2.0-33-generic exe/x86_64.ubuntu.23 prompt/off
Authenticate¶
Create an IAM account or use legacy access keys to operate AWS EC2:
user@host:~$ credentials:
aws:
NAME_OF_YOUR_CREDENTIAL:
auth-type: access-key
access-key: SECRET_ACCESS_KEY_ID
secret-key: SECRET_ACCESS_KEY_VALUE
EOF
Add AWS credentials to Juju:
user@host:~$ Bootstrap Juju controller on AWS EC2¶
Bootstrap a Juju controller:
user@host:~$ Creating Juju controller "<controller-name>" on aws/<region-name>
Looking for packaged Juju agent version 3.5.4 for amd64
Located Juju agent version 3.5.4-ubuntu-amd64 at https://juju-dist-aws.s3.amazonaws.com/agents/agent/3.5.4/juju-3.5.4-linux-amd64.tgz
Launching controller instance(s) on aws/<region-name>...
- i-0f4615983d113166d (arch=amd64 mem=8G cores=2)
Installing Juju agent on bootstrap instance
Waiting for address
Attempting to connect to 54.226.221.6:22
Attempting to connect to 172.31.20.34:22
Connected to 54.226.221.6
Running machine configuration script...
Bootstrap agent now started
Contacting Juju controller at 54.226.221.6 to verify accessibility...
Bootstrap complete, controller "<controller-name>" is now available
Controller machines are in the "controller" model
Now you can run
juju add-model <model-name>
to create a new model to deploy workloads.
See also: Juju | Amazon EC2 bootstrap options

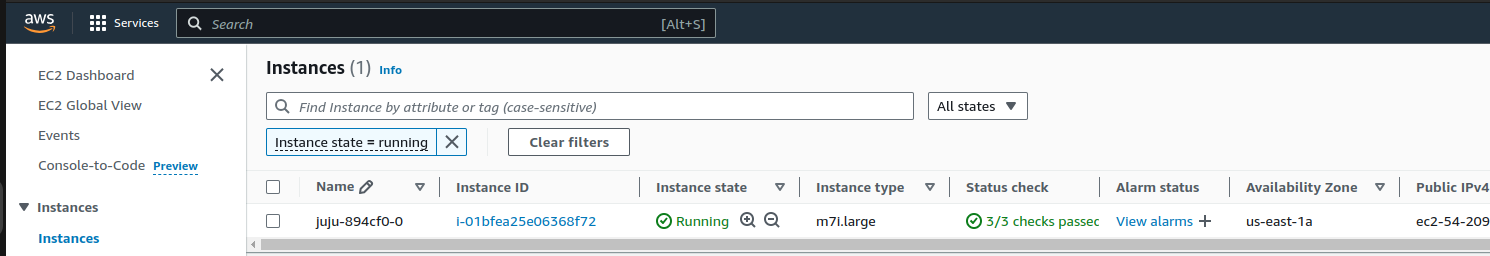

You can check the instance availability in the web interface
(Make sure to choose the right region!)
Access a test database (optional)¶
This section walks you through creating and accessing a test database in your newly configured cloud.
Create a Juju model:
user@host:~$ The following command deploys PostgreSQL and the data-integrator charm to request a test database:
user@host:~$ user@host:~$ user@host:~$ Once juju status shows the apps as active and idle, request the credentials for your newly bootstrapped PostgreSQL database:
user@host:~$ Take note of the values for <username>, <password>, and <endpoint>.
At this point, you can access your cloud database using the internal IP address.
All further Juju applications will use the database through the internal network:
user@host:~$ psql (15.6 (Ubuntu 15.6-0ubuntu0.23.10.1), server 16.9 (Ubuntu 14.12-0ubuntu0.24.04.1))
Type "help" for help.
test-db=>
Expose database (optional)¶
To access the database from outside of the cloud, open the the cloud’s firewall using juju expose :
user@host:~$ Be wary of opening ports to the public
Make sure you understand the risks before doing this in production.
Once exposed, you can connect your database using the same credentials as above except the IP. This time, use the public IP assigned by the cloud provider to the PostgreSQL instance.
You can find it it with juju status:
user@host:~$ ...
Unit Workload Agent Machine Public address Ports Message
postgresql/0* active idle 0 <public-ip> 5432/tcp Primary
...
user@host:~$ psql (15.6 (Ubuntu 15.6-0ubuntu0.23.10.1), server 16.9 (Ubuntu 14.12-0ubuntu0.24.04.1))
Type "help" for help.
test-db=>
To close public access, run:
user@host:~$ Clean up¶
Always clean cloud resources that are no longer necessary; they could be costly!
See all controllers in your machine with
user@host:~$ Controller Model User Access Cloud/Region Models Nodes HA Version
<controller-name> <model-name> admin superuser <cloud-name>/<region-name> 1 1 none 3.6.1
The following command will destroy the Juju controller and remove the cloud instance - meaning all your data will be permanently removed:
user@host:~$ Next, check and manually delete all unnecessary AWS EC2 instances and resources.
To show the list of all your EC2 instances run the following command:
user@host:~$ -------------------------------------------------------
| DescribeInstances |
+---------------------+----------------+--------------+
| InstanceId | InstanceType | State |
+---------------------+----------------+--------------+
| i-0f374435695ffc54c| m7i.large | terminated |
| i-0e1e8279f6b2a08e0| m7i.large | terminated |
| i-061e0d10d36c8cffe| m7i.large | terminated |
| i-0f4615983d113166d| m7i.large | terminated |
+---------------------+----------------+--------------+
List your Juju credentials:
user@host:~$ ...
Client Credentials:
Cloud Credentials
aws <credential-name>
...
Remove AWS EC2 CLI credentials from Juju:
user@host:~$ Finally, remove AWS CLI user credentials (to avoid forgetting and leaking):
user@host:~$
