Enable tracing¶
This guide contains the steps to enable tracing with Grafana Tempo for your MySQL application.
Prerequisites¶
Fully configured monitoring with COS
Deploy Tempo¶
First, switch to the Kubernetes controller where the COS model is deployed:
juju switch <k8s_controller_name>:<cos_model_name>
Then, deploy the dependencies of Tempo following this tutorial .
To summarize:
Deploy the MinIO charm
Deploy the s3 integrator charm
Add a bucket in MinIO using a python script
Configure s3 integrator with the MinIO credentials
Finally, deploy and integrate with Tempo HA in a monolithic setup .
Offer interfaces¶
Next, offer interfaces for cross-model integrations from the model where Charmed MySQL is deployed.
To offer the Tempo integration, run
juju offer <tempo_coordinator_k8s_application_name>:tracing
Then, switch to the Charmed MySQL VM model, find the offers, and integrate (relate) with them:
juju switch <mysql_controller_name>:<mysql_model_name>
juju find-offers <k8s_controller_name>:
Do not miss the “
:” in the command above!
Below is a sample output where k8s is the K8s controller name and cos is the model where cos-lite and tempo-k8s are deployed:
Store URL Access Interfaces
k8s admin/cos.tempo admin tracing:tracing
Next, consume this offer so that it is reachable from the current model:
juju consume k8s:admin/cos.tempo
Consume interfaces¶
First, deploy opentelemetry-collector / opentelemetry-collector-k8s charm:
juju deploy opentelemetry-collector --channel 2/stable
juju deploy opentelemetry-collector-k8s --channel 2/stable --trust
Then, integrate OpenTelemetry Collector with Charmed MySQL:
juju integrate opentelemetry-collector:cos-agent mysql:cos-agent
juju integrate opentelemetry-collector-k8s:receive-traces mysql-k8s:tracing
Finally, integrate OpenTelemetry Collector with the consumed interface from the previous section:
juju integrate opentelemetry-collector:send-traces tempo:tracing
juju integrate opentelemetry-collector-k8s:send-traces tempo:tracing
Wait until the model settles. The following is an example of the juju status --relations on the Charmed MySQL model:
Model Controller Cloud/Region Version SLA Timestamp
mysql lxd localhost/localhost 3.6.14 unsupported 19:15:55Z
SAAS Status Store URL
tempo active k8s admin/cos.tempo
App Version Status Scale Charm Channel Rev Exposed Message
mysql 8.4.7 active 1 mysql 8.4/edge no
opentelemetry-collector blocked 1 opentelemetry-collector 2/stable 316 no
Unit Workload Agent Machine Public address Ports Message
mysql/0* active idle 0 10.205.193.32 3306,33060/tcp Primary
opentelemetry-collector/0* blocked idle 10.205.193.32
Machine State Address Inst id Base AZ Message
0 started 10.205.193.32 juju-4f3e50-0 ubuntu@26.04 Running
Integration provider Requirer Interface Type Message
opentelemetry-collector:peers opentelemetry-collector:peers otelcol_replica peer
mysql:cos-agent opentelemetry-collector:cos-agent tracing subordinate
mysql:database-peers mysql:database-peers mysql_peers peer
mysql:refresh-v-three mysql:refresh-v-three refresh peer
mysql:rolling-ops mysql:rolling-ops rolling_op peer
tempo:tracing opentelemetry-collector:send-traces tracing regular
Model Controller Cloud/Region Version SLA Timestamp
mysql k8s microk8s/localhost 3.6.14 unsupported 16:33:26Z
SAAS Status Store URL
tempo active k8s admin/cos.tempo
App Version Status Scale Charm Channel Rev Address Exposed Message
mysql-k8s 8.4.7 active 1 mysql-k8s 8.4/edge 10.152.183.135 no Primary
opentelemetry-collector-k8s active 1 opentelemetry-collector-k8s 2/stable 207 10.152.183.136
Unit Workload Agent Address Ports Message
mysql-k8s/0* active executing 10.1.241.253 Primary
opentelemetry-collector-k8s/0* active idle 10.1.241.254
Integration provider Requirer Interface Type Message
opentelemetry-collector-k8s:peers opentelemetry-collector-k8s:peers otelcol_replica peer
mysql-k8s:tracing opentelemetry-collector-k8s:receive-traces tracing regular
mysql-k8s:database-peers mysql-k8s:database-peers mysql_peers peer
mysql-k8s:refresh-v-three mysql-k8s:refresh-v-three refresh peer
mysql-k8s:rolling-ops mysql-k8s:rolling-ops rolling_op peer
tempo:tracing opentelemetry-collector-k8s:send-traces tracing regular
Note
All traces are exported to Tempo using HTTP. Support for sending traces via HTTPS is an upcoming feature.
View traces¶

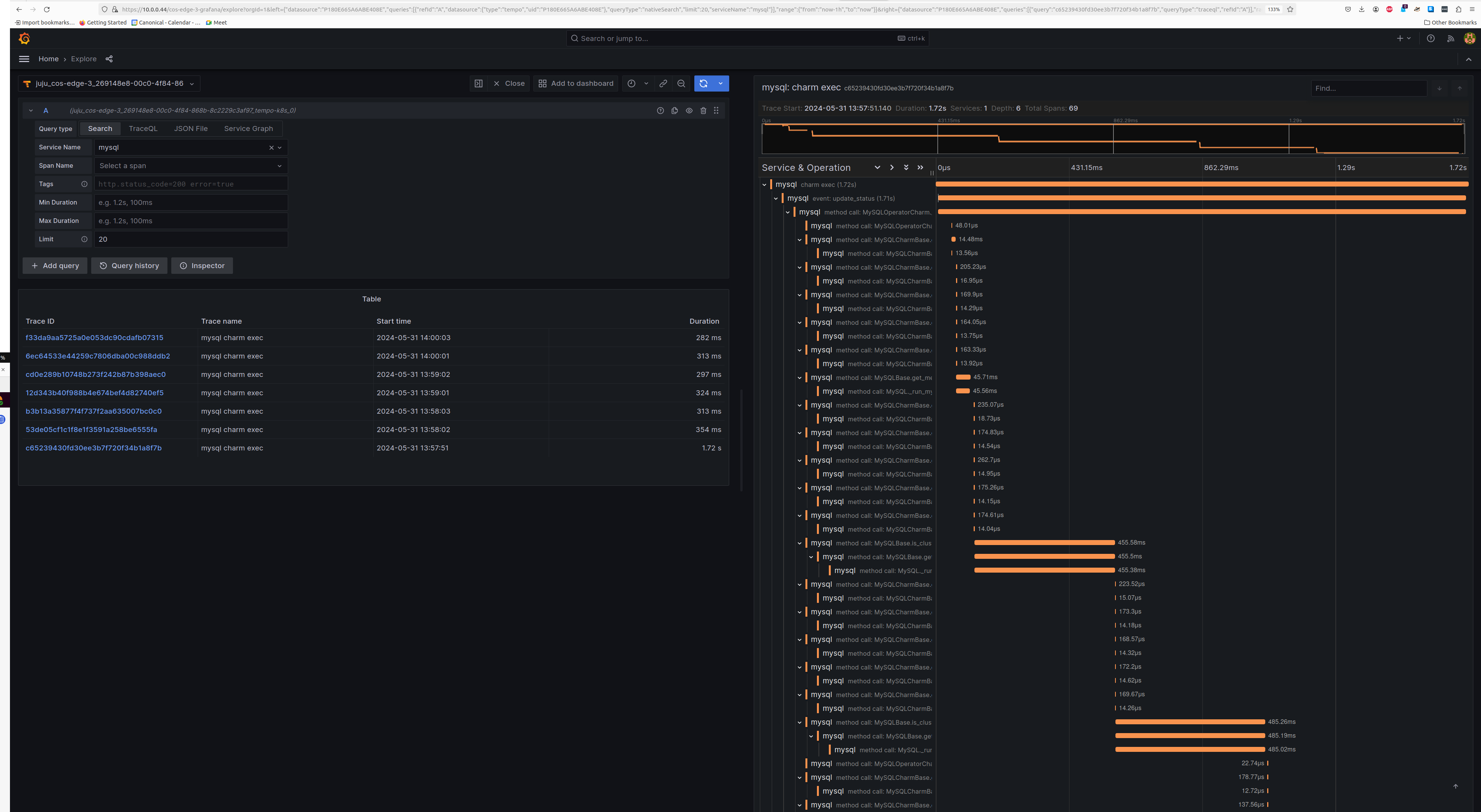

The Tempo traces will be accessible from Grafana under the Explore section with tempo-k8s as the data source. You will be able to select mysql as the Service Name under the Search tab to view traces belonging to Charmed MySQL.
Screenshot
Feel free to read through the Tempo HA documentation at your leisure to explore its deployment and its integrations.
